What Products Are Suitable for Embedded Precision Cooling Systems?

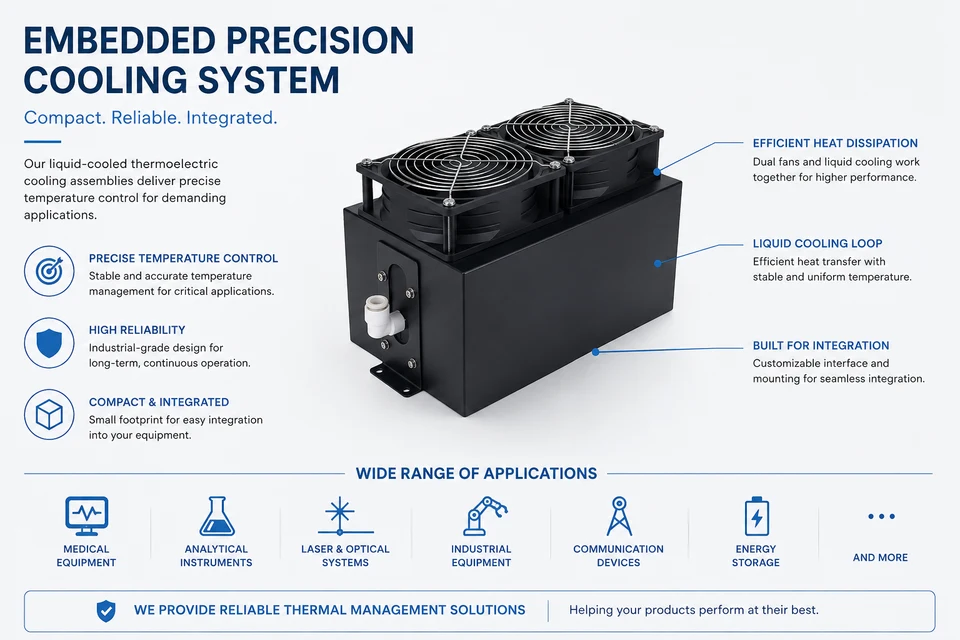

Many OEM products do not need a standalone chiller. They need a compact cooling subsystem that can be installed inside the product, connected to the control system, and used to cool a chamber, liquid loop, optical path, sensor area, probe, plate or localized functional module. This is where an embedded precision cooling system becomes the right engineering category.
Core message
If your product needs a small, precise and integrated cooling unit rather than a large refrigeration machine, you are likely looking for a custom thermoelectric cooling assembly or compact TEC cooling system.
Localized cooling inside equipment
The cooling target is a plate, liquid loop, probe, optical area, small chamber, sensor block or functional cartridge rather than an entire room.
Limited installation space
The product has a fixed internal structure and needs a compact TEC cooling module with custom mounting, airflow or liquid interface.
Precise temperature control
The system needs stable temperature control around a target condition, often with sensor feedback, controller integration and fast response.
Low vibration and no refrigerant
The device cannot tolerate compressor vibration, refrigerant piping, leakage risk or bulky refrigeration architecture.
Embedded TEC subsystem
When an embedded TEC cooling subsystem is the right fit
The strongest use cases are not general room cooling. They are equipment-level thermal control problems where size, stability, low vibration, safety and integration matter.
01
Localized cooling inside equipment
The cooling target is a plate, liquid loop, probe, optical area, small chamber, sensor block or functional cartridge rather than an entire room.
02
Limited installation space
The product has a fixed internal structure and needs a compact TEC cooling module with custom mounting, airflow or liquid interface.
03
Precise temperature control
The system needs stable temperature control around a target condition, often with sensor feedback, controller integration and fast response.
04
Low vibration and no refrigerant
The device cannot tolerate compressor vibration, refrigerant piping, leakage risk or bulky refrigeration architecture.
05
OEM integration requirement
The cooling unit must become part of the customer product, not an external accessory that changes the product form factor.
Checkpoint
How to select a precision cooling system for your product
Before selecting a cooling module, define the real thermal task. The correct system is designed around the target temperature, heat load, available space and how cold energy reaches the product.
Target temperature
Define whether the target is liquid temperature, surface temperature, air temperature or component temperature. Standard modules may target 25°C liquid cooling, while lower temperatures require custom evaluation.
Heat load
Estimate the heat generated by the product and the heat that must be removed during operation. Cooling capacity should be evaluated at the actual temperature difference, not only by nominal wattage.
Cooling interface
Decide whether the product needs a liquid cold plate, water tank, pump loop, direct surface cooling, cold air output or a customized cold-side structure.
Hot-side heat rejection
Confirm airflow, fan space, exhaust direction, heat sink size and whether the surrounding enclosure can release heat without recirculation.
Electrical and control integration
Confirm voltage, current, temperature sensor position, controller logic, alarm signals, protection requirements and communication needs.
Mechanical integration
Define mounting holes, tube direction, service access, vibration limits, cable routing, insulation and condensation protection.
Embedded TEC subsystem vs Compressor refrigeration
Why not always use compressor cooling?
Compressor systems are strong for large-capacity refrigeration, but many embedded OEM devices need a smaller and more controllable cooling subsystem.
Equipment size
Embedded TEC subsystem: A compact TEC cooling system can be designed around the product envelope.
Compressor refrigeration: Compressor systems are usually larger and harder to fit inside compact equipment.
Control behavior
Embedded TEC subsystem: TEC assemblies respond quickly and can support precise embedded temperature control.
Compressor refrigeration: Compressor systems are better for broader refrigeration loads but can be less practical for localized control.
Noise and vibration
Embedded TEC subsystem: TEC elements have no moving parts; system noise mainly comes from fans or pumps.
Compressor refrigeration: Compressors introduce mechanical vibration and operating noise.
Refrigerant and maintenance
Embedded TEC subsystem: TEC cooling assemblies do not require refrigerant, sealed piping or refrigerant maintenance.
Compressor refrigeration: Compressor systems depend on refrigerant and sealed circuits.
Best application fit
Embedded TEC subsystem: Medical devices, aesthetic systems, lab instruments, analytical systems and compact industrial equipment.
Compressor refrigeration: Air conditioners, refrigerators, freezers, chillers and large cooling systems.
OEM requirement
Typical products that can integrate this type of cooling subsystem
Medical equipment cooling
Liquid cooling or localized temperature control for compact medical devices, diagnostic modules and equipment requiring stable cold-side integration.
Aesthetic and beauty device cooling
Handpiece cooling, skin-contact temperature control and circulating liquid cooling for commercial aesthetic equipment.
Laboratory instrument cooling
Sample cooling, reagent temperature control, small chamber cooling and localized cold-side control for laboratory instruments.
Analytical and optical systems
Temperature stabilization for lasers, optical paths, sensors, detectors and analytical modules that need compact thermal management.
Industrial embedded cooling
Electronics cooling, inspection systems, control cabinets, energy devices and compact OEM equipment requiring integrated cooling.
Selection note
A practical OEM evaluation process
Define the cooling target
Identify what must be cooled, where the temperature is measured and how stable the target must be.
Share space and interface constraints
Provide product structure, mounting envelope, tube direction, airflow limits and electrical constraints.
Estimate real operating conditions
Include ambient temperature, duty cycle, heat load, target liquid or surface temperature and expected operation time.
Choose standard or custom module
Use standard 150W, 250W or 300W modules when they fit; request a custom TEC cooling assembly when geometry, temperature or interface is different.
Validate with sample testing
Confirm cooling capacity, temperature stability, condensation control and reliability in the final equipment environment.
Need an embedded precision cooling subsystem for your product?
Arkmex Technology designs custom thermoelectric cooling assemblies, compact TEC cooling systems and embedded temperature control solutions for OEM products that need reliable equipment-level integration.
